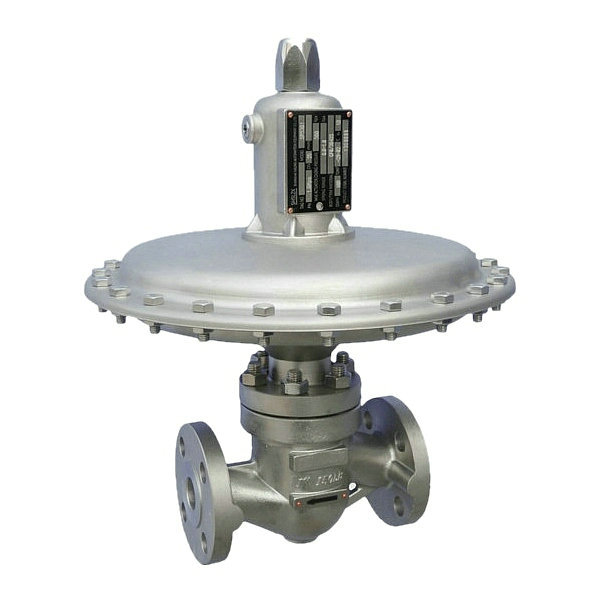

Name: Blanketing Gas Relief Regulating Valve (Storage tank used)

Model: SP5000

Application: Storage tank protective blanketing gas, combustible gas, downstream pressure constant used.

Outlet Pressure regulating range: 0.5~15KPa

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: PN16,40,64      ANSI 150LB,300LB,600LB

Connection: RF flange connection

Nominal Diameter: 1/2 ~8 Inch, DN15 ~200

Kv values:  1.6 to 380

Flow Characteristics: L

Leakage Class: Soft-sealing VI

Temperature Range: - 48 ~ 150 degC

Body Material: SUS304 / SUS316 / SUS316L / Other materials

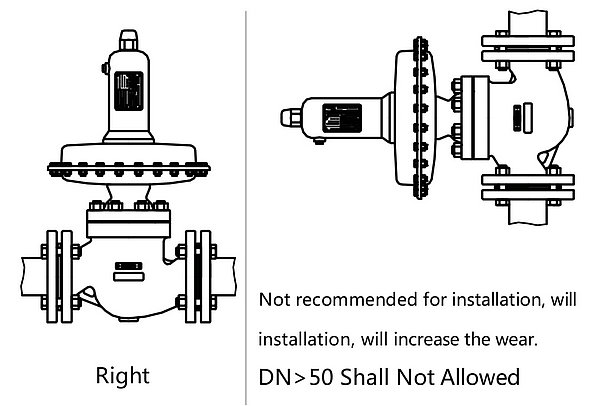

Installation:

Sample from tank top
